The future of intelligent charging

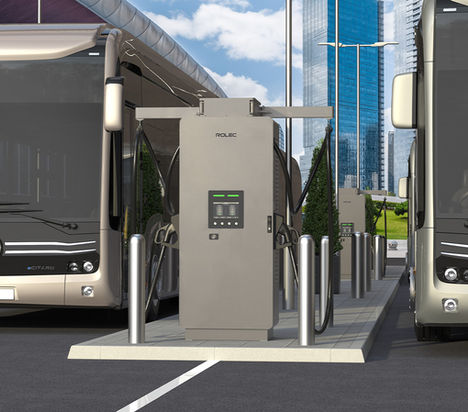

ULTRACHARGE 400

An intelligent, high powered and scalable DC ultra-rapid charging station is available in six standard power configurations; choose from 200kW, 240kW, 280kW, 320kW, 360kW models with the ability to be upgraded in modules of 40kW, all the way up to 400kW. The ULTRACHARGE 400 is a futureproof and cost-effective solution for public, fleet, marina and highway infrastructure deployment. Designed with installers and chargepoint owner / operators in mind, these chargers are easy to install, maintain and service
View Data Sheet

‍

Feature-proof & feature rich

  • Plug & charge, mobile app, or RFID controlled charging
  • Offers 2x DC charging outputs
  • Up to 400kW charging speeds
  • Upgradeable power modules
  • OCPP 1.6 compliant, OCPP 2.0.1 (future) – integrates with any CPMS
  • Over-the-air firmware and software updates
  • Built-in 30mA Type A RCD protection
  • Intelligent dynamic power sharing
  • Supports static and dynamic load management

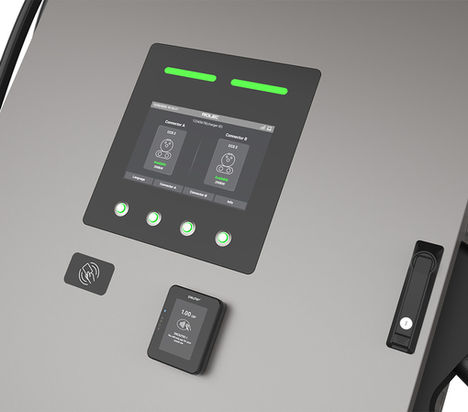

  • 10.1" HD user interface screen
  • 4G / Wi-Fi / Ethernet connectivity
  • 95% Peak efficiency
  • Ultrawide power output voltage range 150V – 1000V
  • Under/overvoltage, DC overcurrent, over-temp & surge protection
  • 5m 500A Peak and 375A Nominal charging cables, capable of delivering 200kW charge rate to a standard 400V vehicle

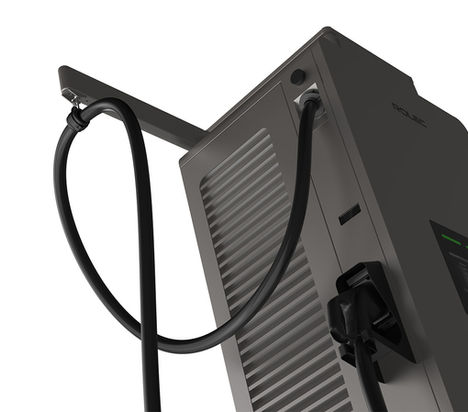

  • Cable management system as standard
  • Optional 7m cables also available
  • Optional RFID / NFC / contactless card payment terminal
  • Conforms with PAS 1899 accessible charging standard
  • Strong and durable IP54 / IK10 rated

‍

KEY FEATURES

Up to 400kW charging speeds
Modular & scalable solution
Dynamic power sharing
OCPP 1.6 compliant
App / RFID / & optional contactless controlled
PAS 1899 accessible charging standard

AN INNOVATIVE DC ULTRA-RAPID EV CHARGING SOLUTION, FOR FUTURE THINKING BUSINESSES

SUITABLE FOR
Our Work Text Icon
FLEETS
Our Work Text Icon
MARINAS
Our Work Text Icon
SERVICE STATIONS §
Our Work Text Icon
CAR PARKS
